Description:
This product is sold on Aliexpress, when you click the buy now button, you will be redirected to Aliexpress to securely complete your purchase.

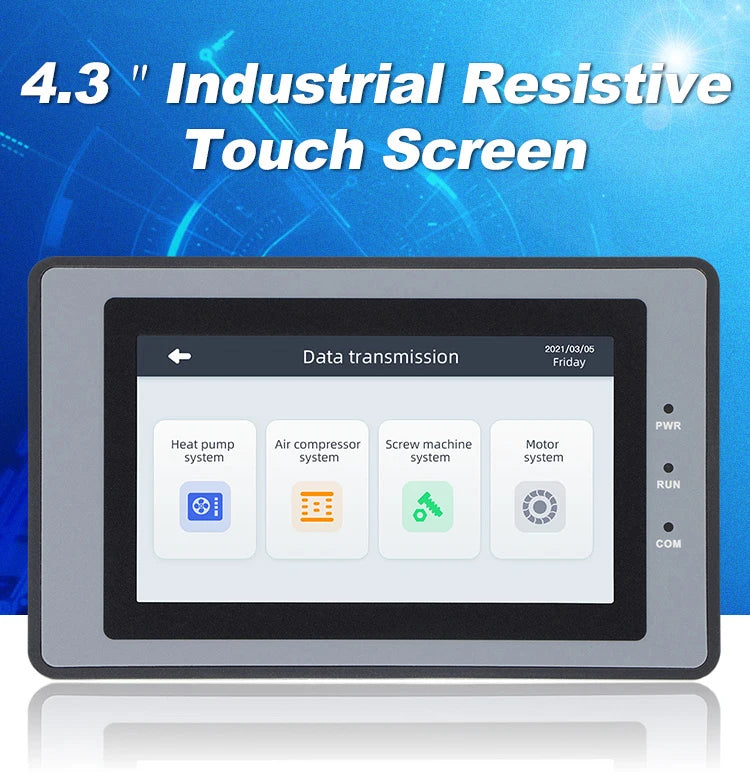

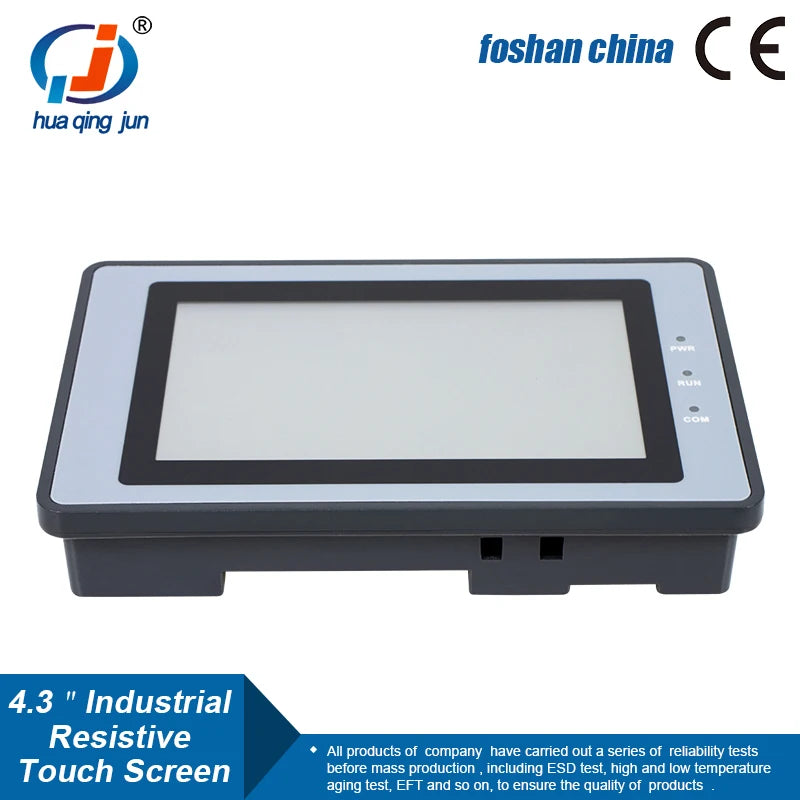

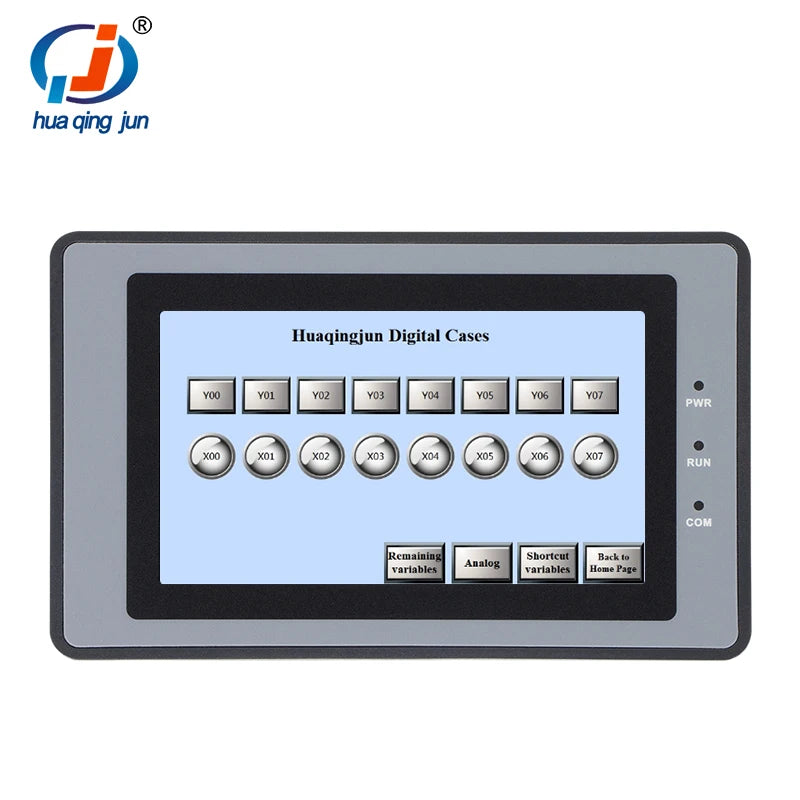

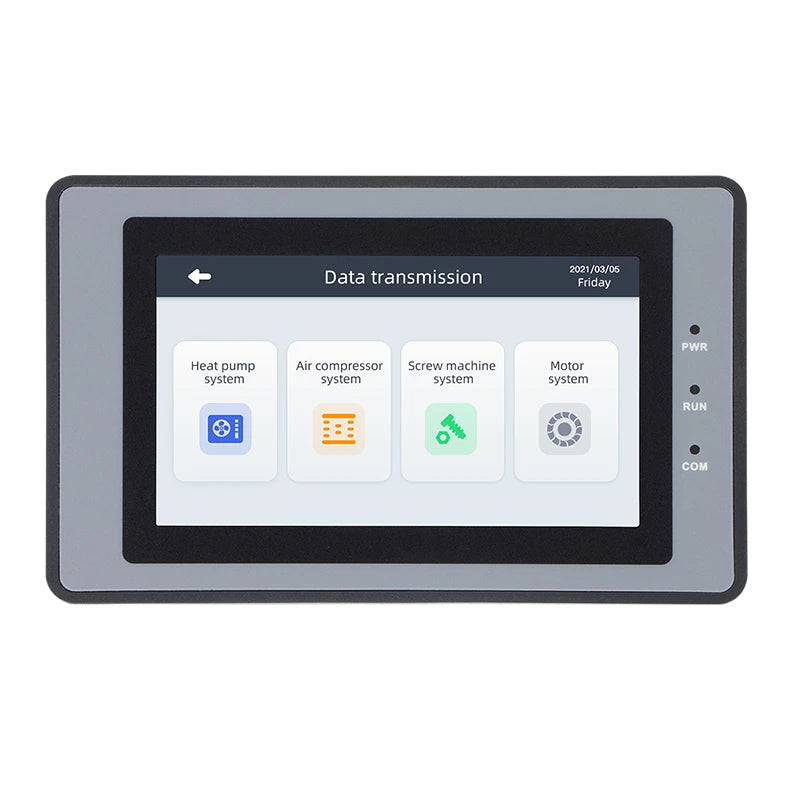

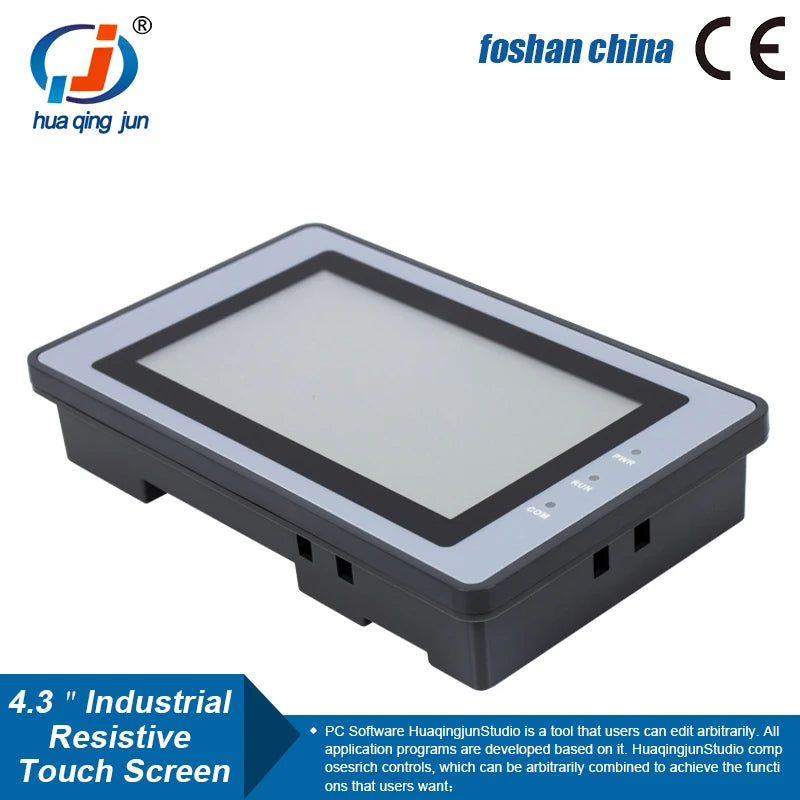

Upgrade your industrial control setup with the Huaqingjun 4.3 Inch LCD Touch Screen HMI. Featuring a clear 480x272 TN TFT display and a responsive 4-wire resistive touch screen, this HMI supports Ethernet, RS485, RS232, and RS422 communication, making it compatible with a wide range of PLC systems. With 128MB SPI NAND Flash memory, 2GB RAM, and a built-in real-time clock, it offers reliable performance for industrial monitoring and control. The device supports backlight adjustment, program downloads via USB, U disk, or Ethernet, and operates on DC19-30V power. Compact and durable, this HMI is perfect for efficient industrial applications.
-
LCD resolution: 480x272 TN TFT
-
Touch: 4-wire resistive
-

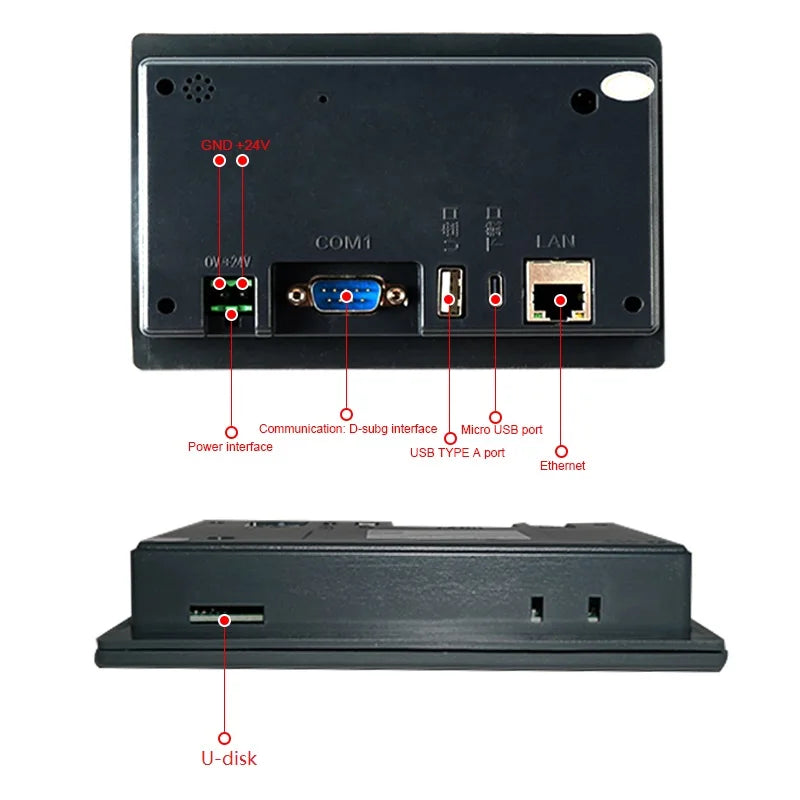

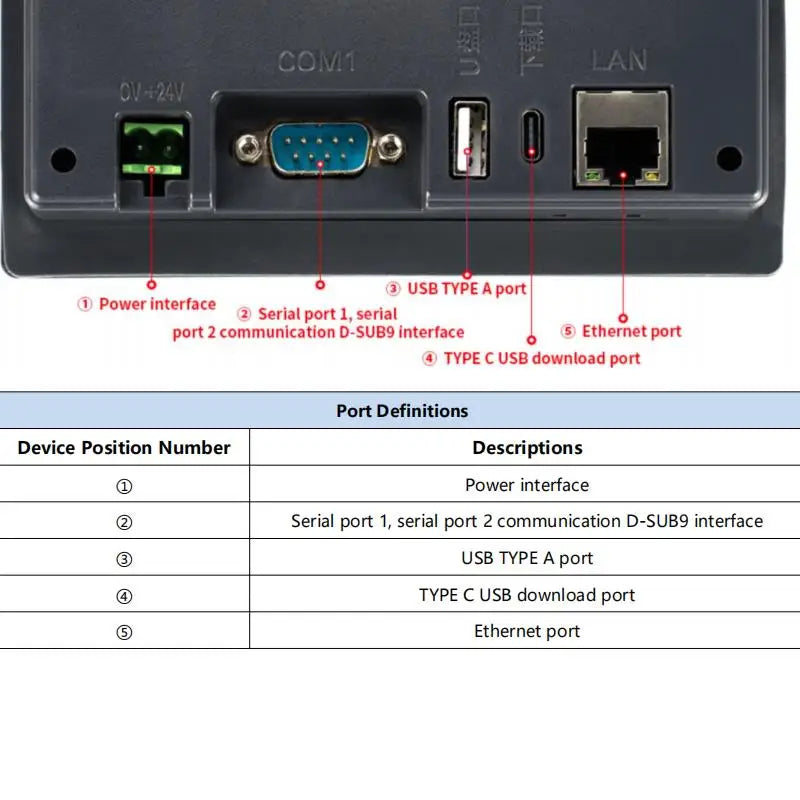

Communication: Ethernet/RJ45, RS485, RS232, RS422
-
Memory: 128MB SPI NAND Flash, 2GB RAM
-
Power Voltage: DC19-30V
-

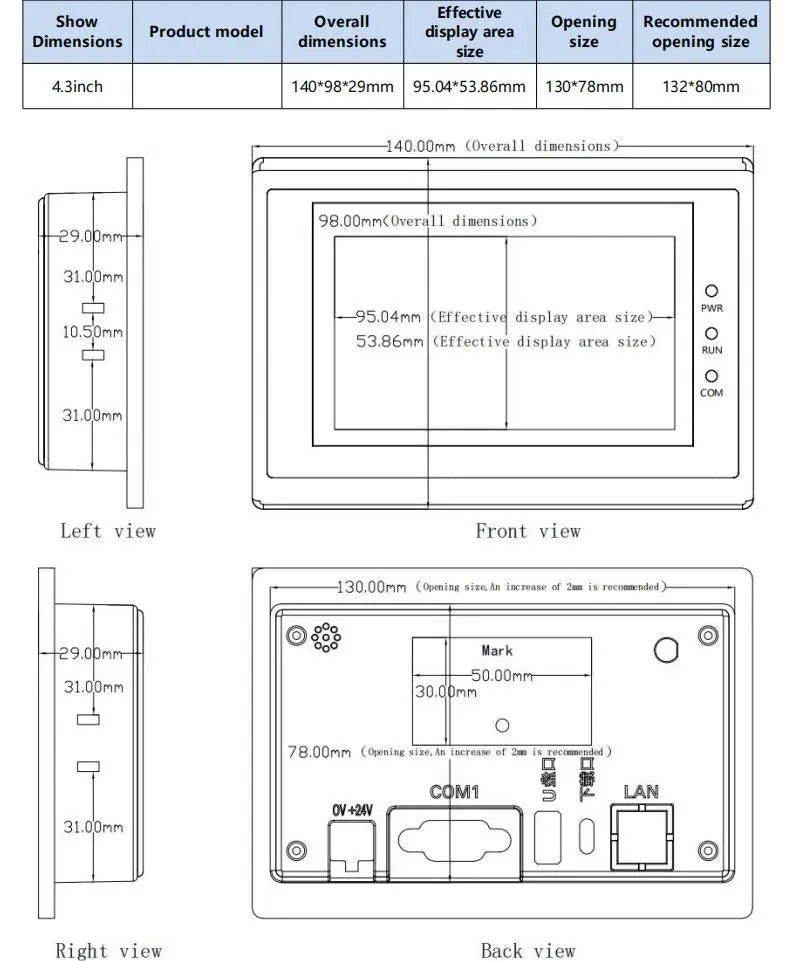

Overall Dimensions: 140mm x 98mm x 29mm
-
Warranty: 1 year
Product Description

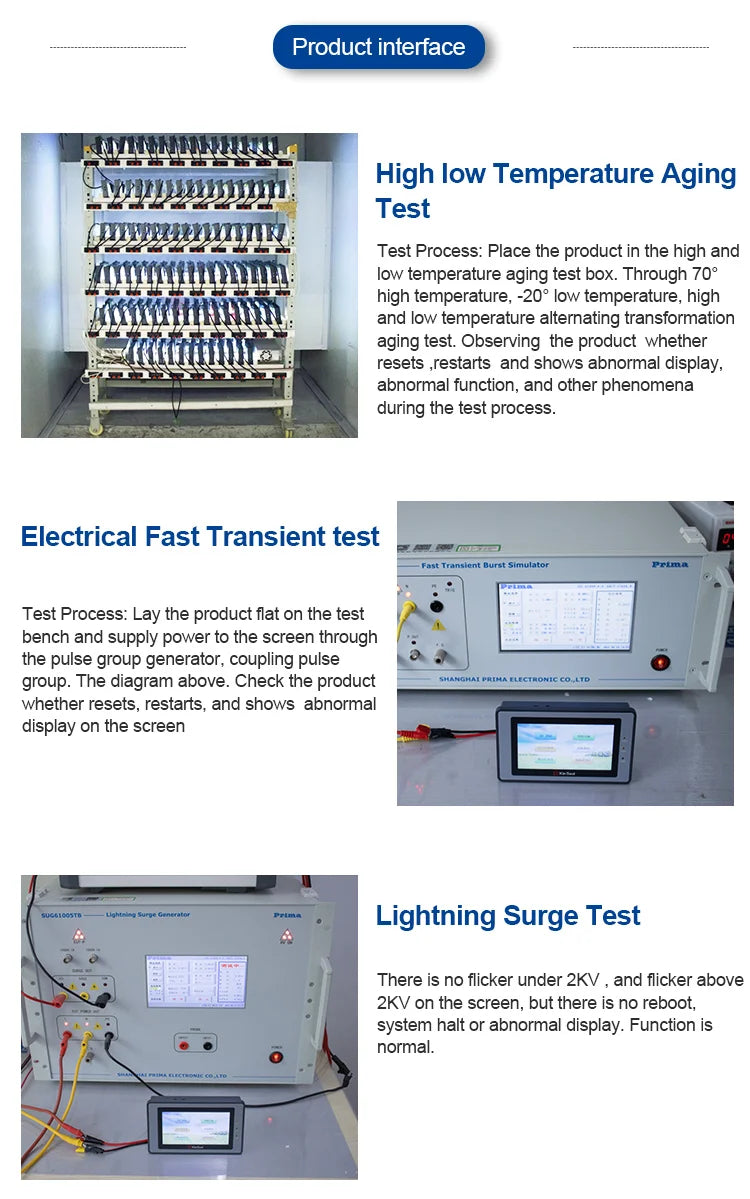

1. CE&ROHS: Comply with EN61000-6-2:2005, EN61000-6-4:2007 standards; Lightning surge +/ -2kV, EFT: +/ -4kV; Electrostatic contact discharge+/-6KV; Electrostatic air discharge +/-10KV.
2. Power protection: +/-2KV lightning surge protection capability
3. Protection grade: The front panel conforms to IP65 (with flat plate cabinet installation), and the rear panel conforms to IP20
4. Environmental humidity: 10~90%RH(non-condensing)
5. Operating temperature: -10℃~50℃
6. Storage temperature: -30℃~70℃

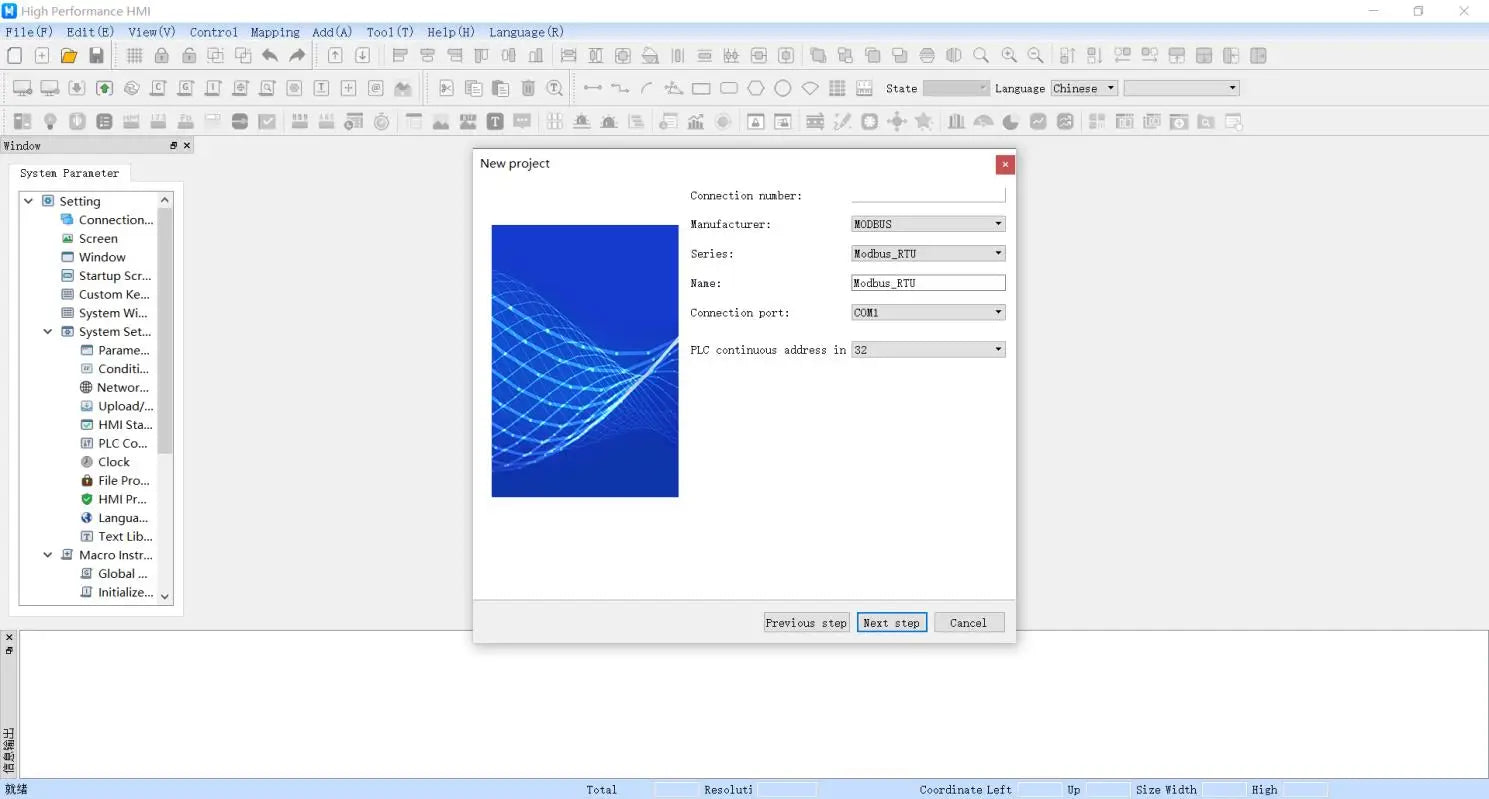

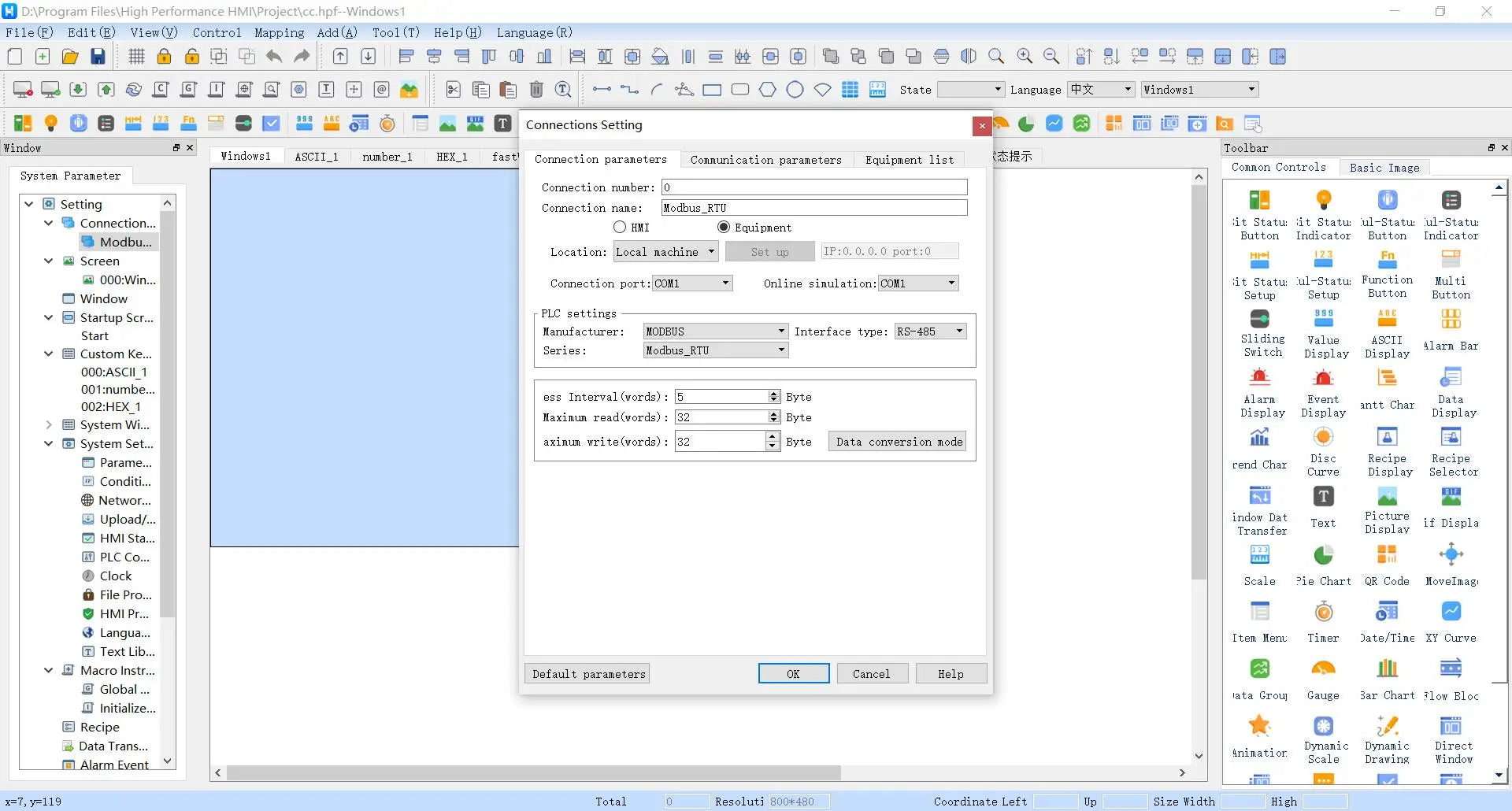

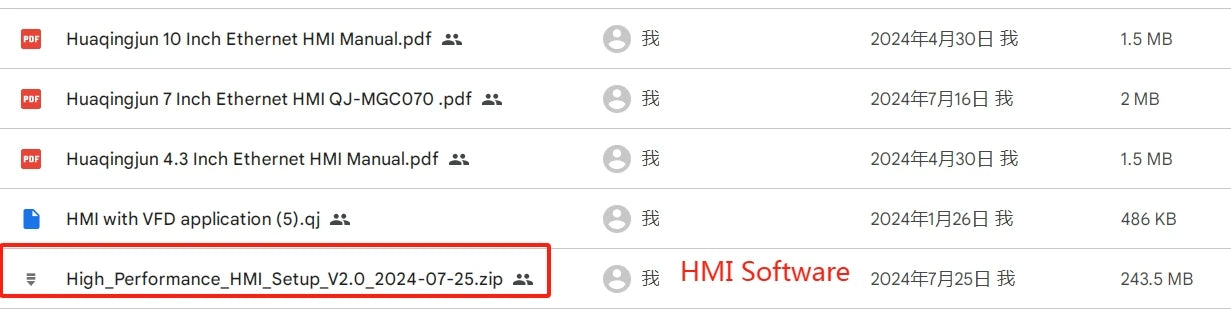

HMI PC Configuration Software
-
