Description:
This product is sold on Aliexpress, when you click the buy now button, you will be redirected to Aliexpress to securely complete your purchase,

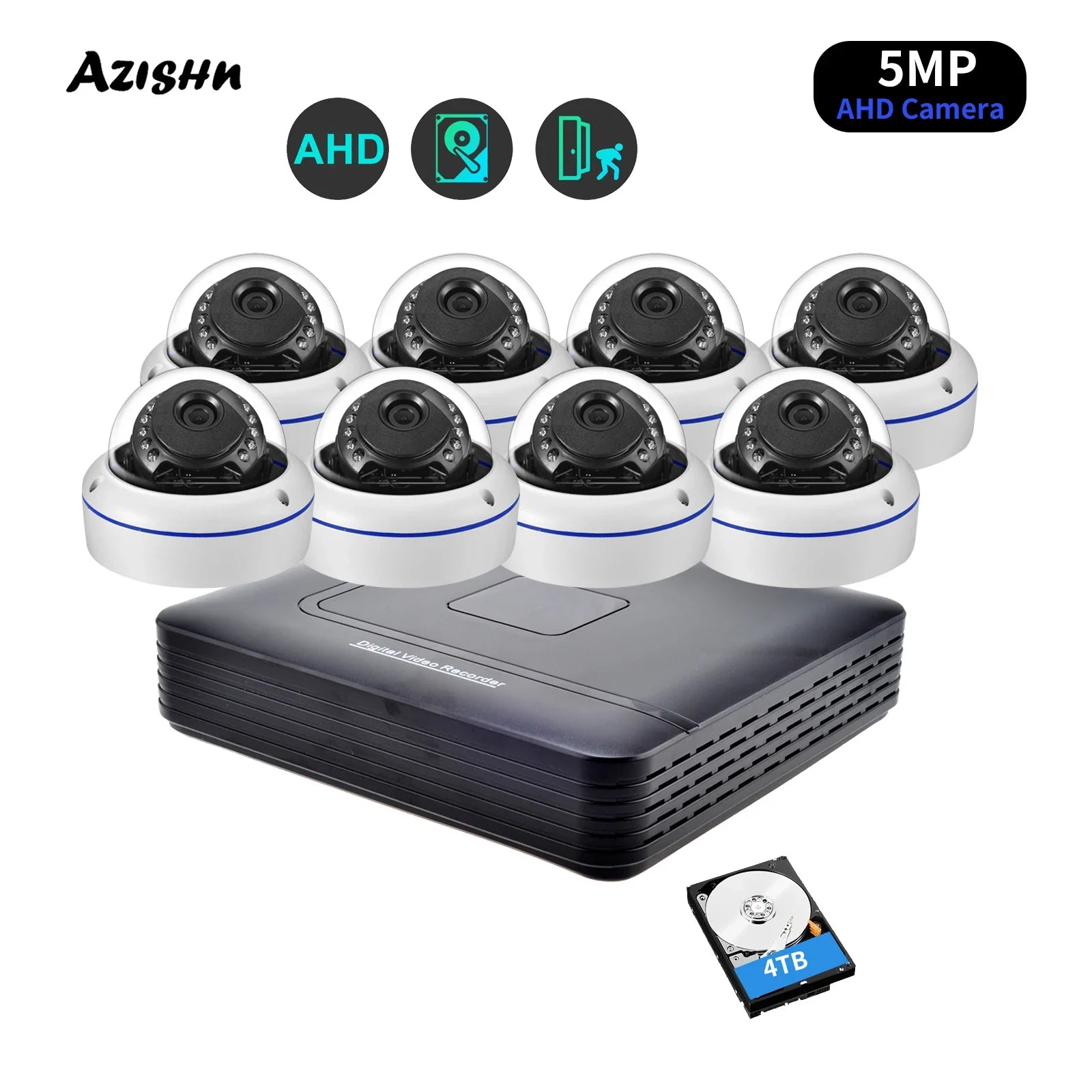

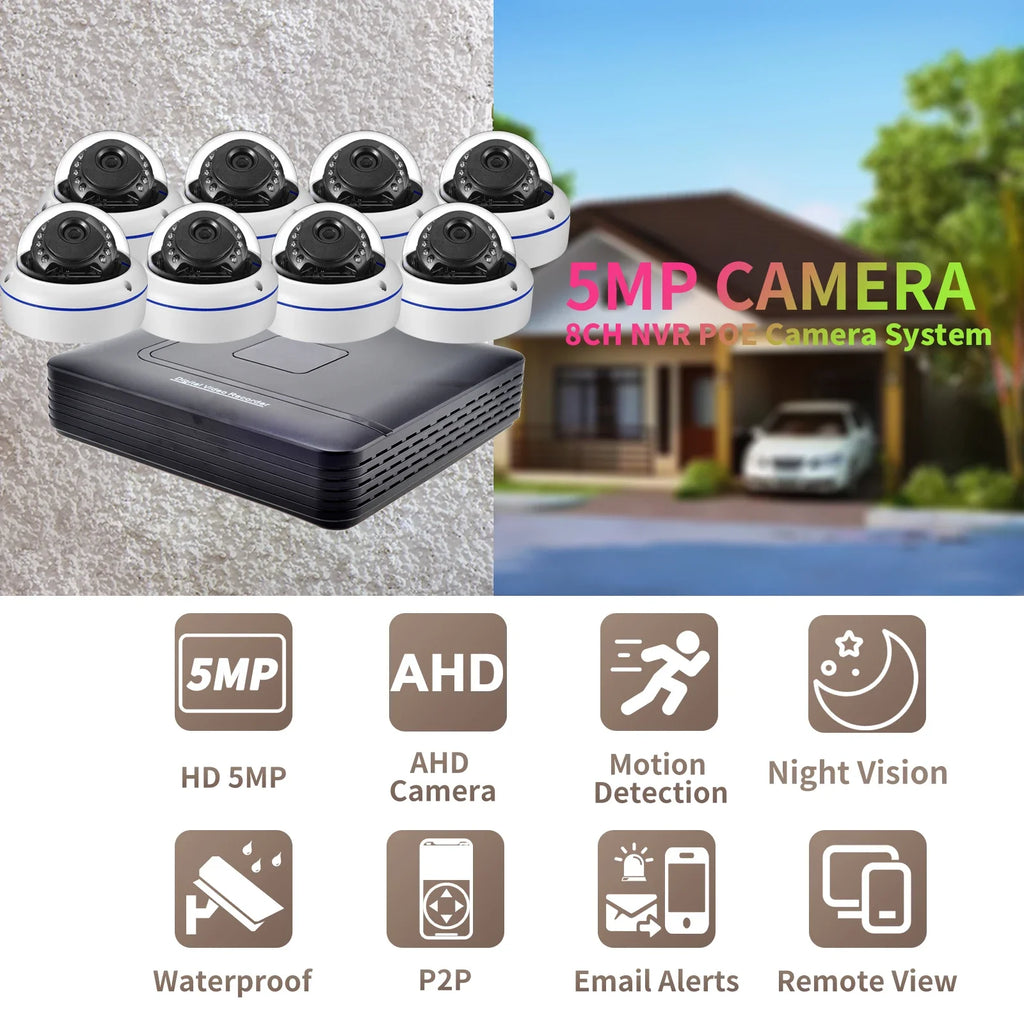

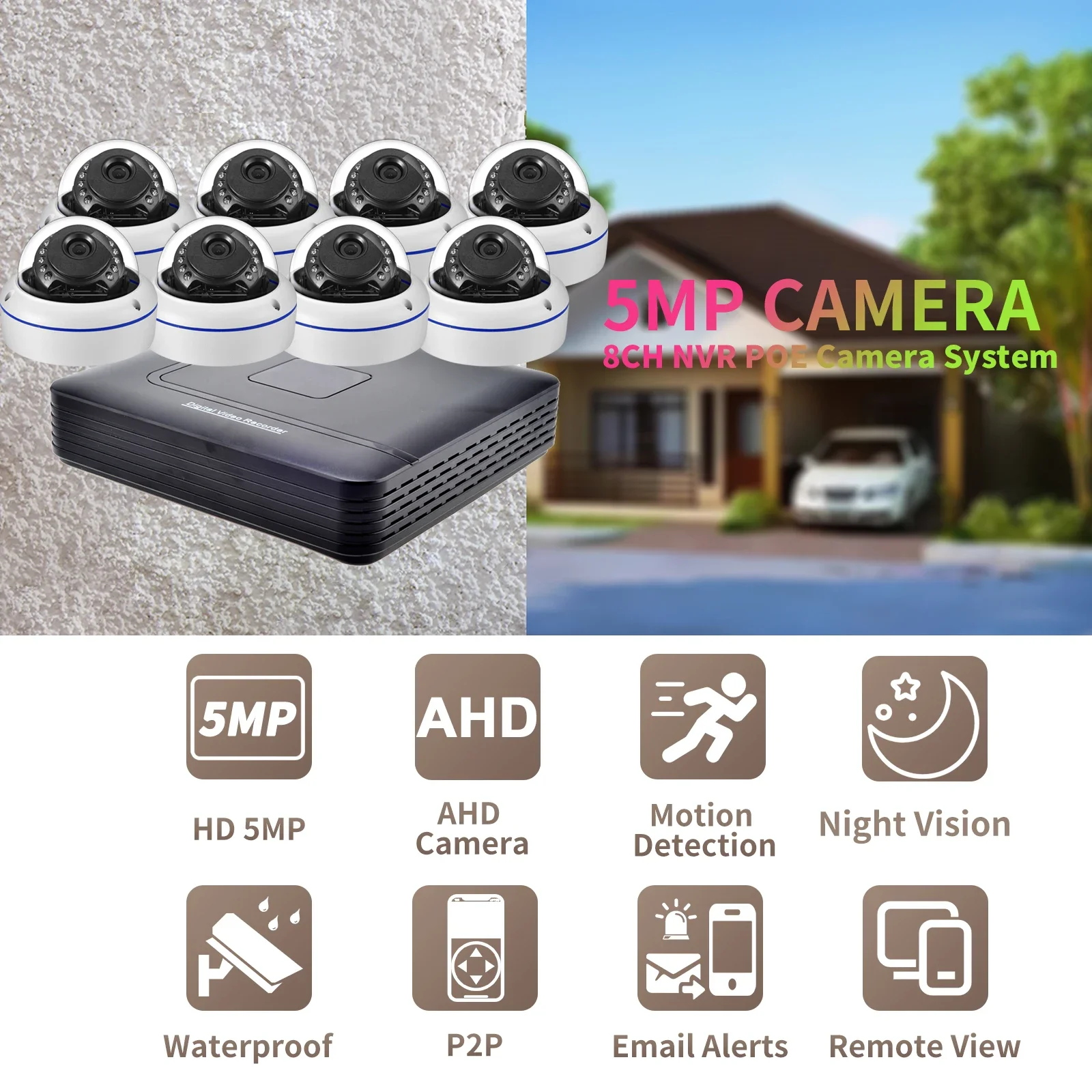

Protect your home, business, or property with the AZISHN 8 Channel AHD DVR CCTV Security Surveillance System. Designed for reliable indoor and outdoor monitoring, this complete security kit delivers sharp 5MP high-definition video, durable metal dome cameras, and advanced AHD technology for clear, detailed footage day and night.
The system features an 8-channel DVR with BNC inputs, allowing you to connect up to 8 cameras for full property coverage. Choose from 2PCS, 4PCS, 6PCS, or 8PCS camera options to suit your security needs. Each camera is equipped with a 3.6mm lens and automatic IR-CUT filter switching, ensuring accurate color during the day and enhanced night vision performance in low-light conditions.
Built with a weatherproof metal housing, these 5MP dome cameras are suitable for both indoor and outdoor installation. The DVR supports NTSC and PAL TV systems and operates on DC 12V power supply for stable performance.
Important Notes
This is an AHD camera system. AHD cameras must be used with an AHD DVR to function correctly. It does not support Analog DVR or NVR systems and cannot be connected directly to a TV or LCD monitor. Please ensure compatibility before purchasing.
Buyers are responsible for any applicable taxes or duties. If you have questions regarding tax or shipping, please contact the seller after payment. The correct power plug (EU, UK, AU, US) will be selected according to your country.
Secure your property with a dependable, high-resolution CCTV system designed for clear footage, durable performance, and flexible installation options. Explore more security solutions at treasurepulse.co.

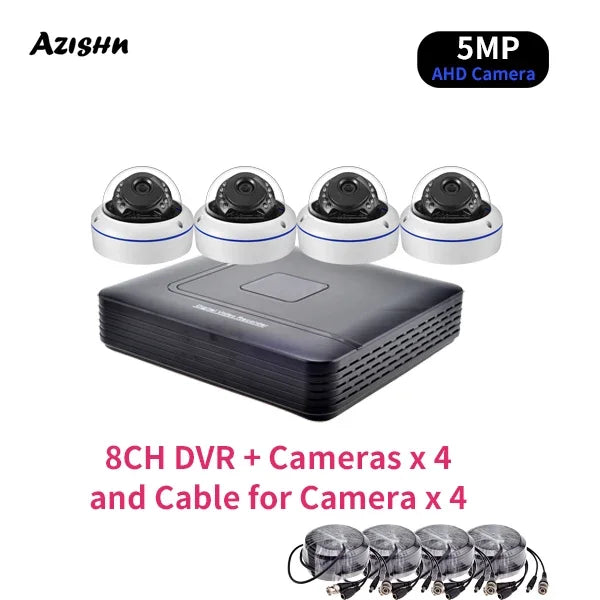

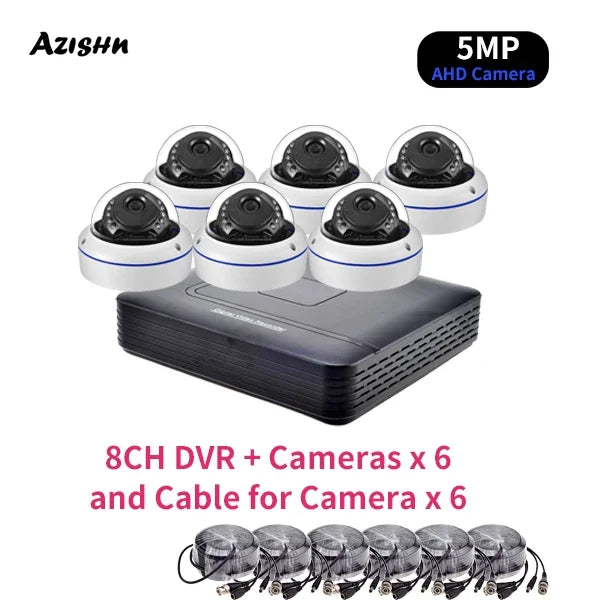

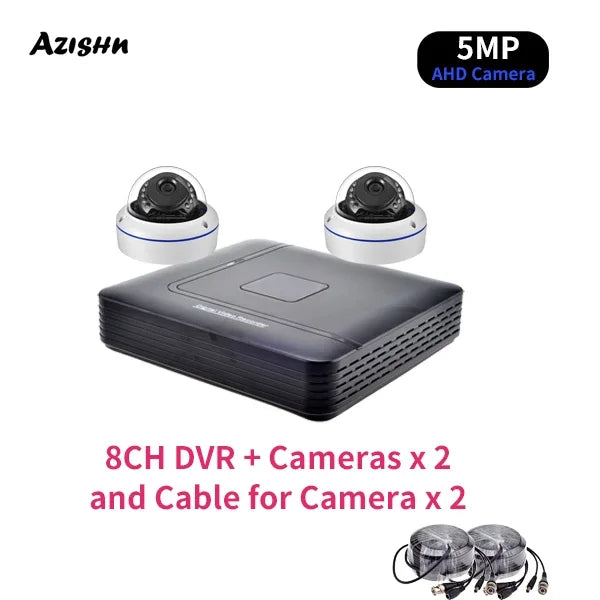

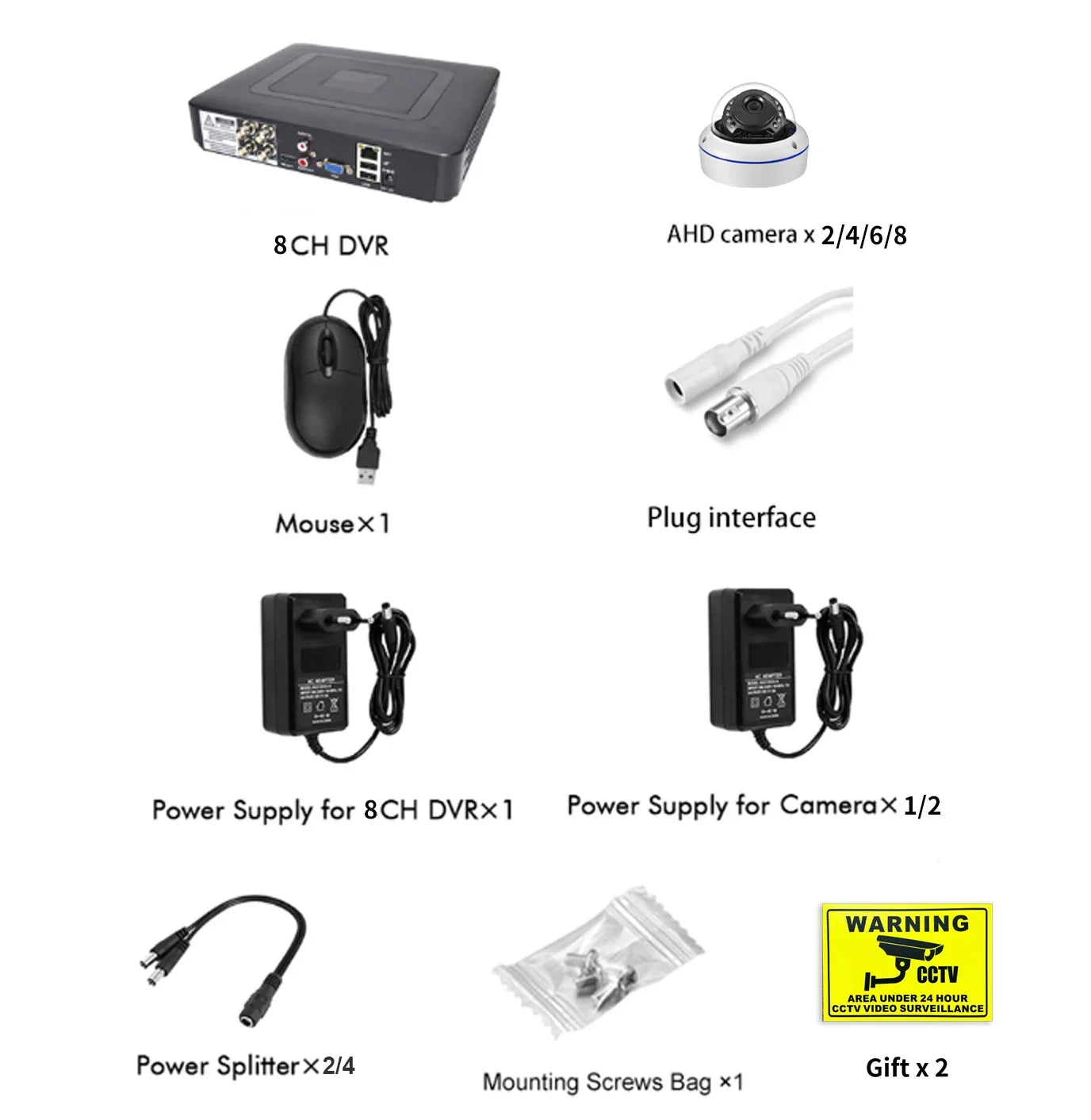

What included in the kits?

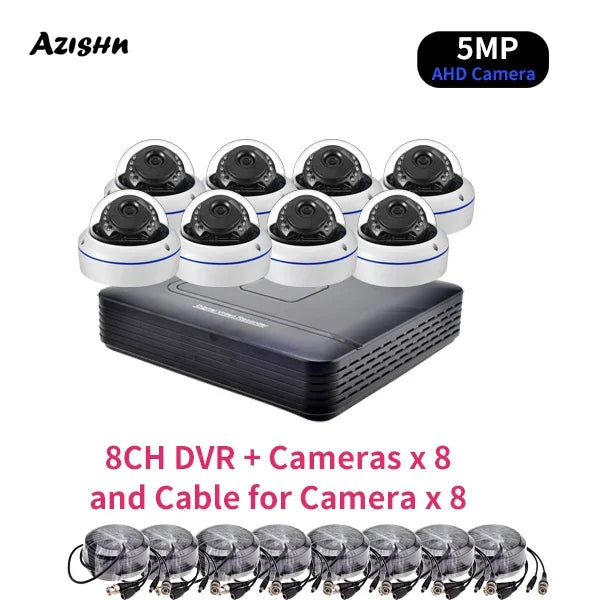

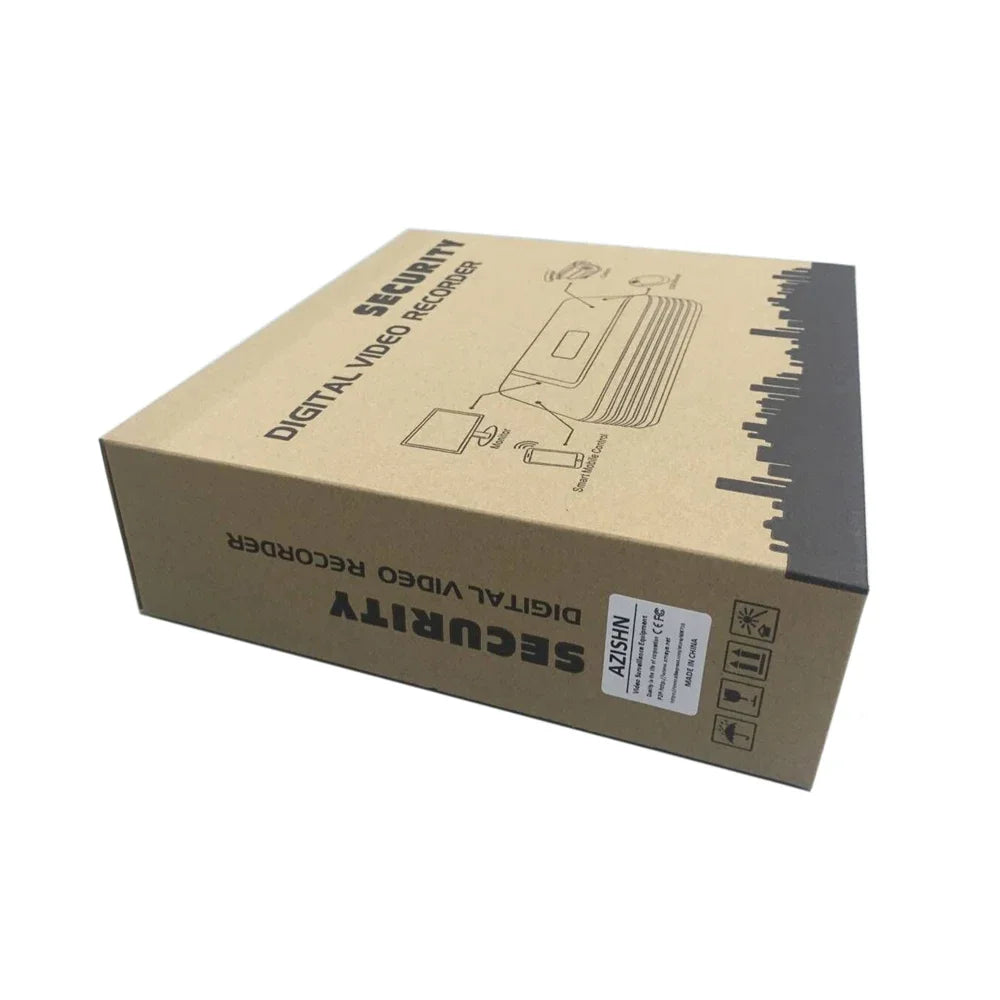

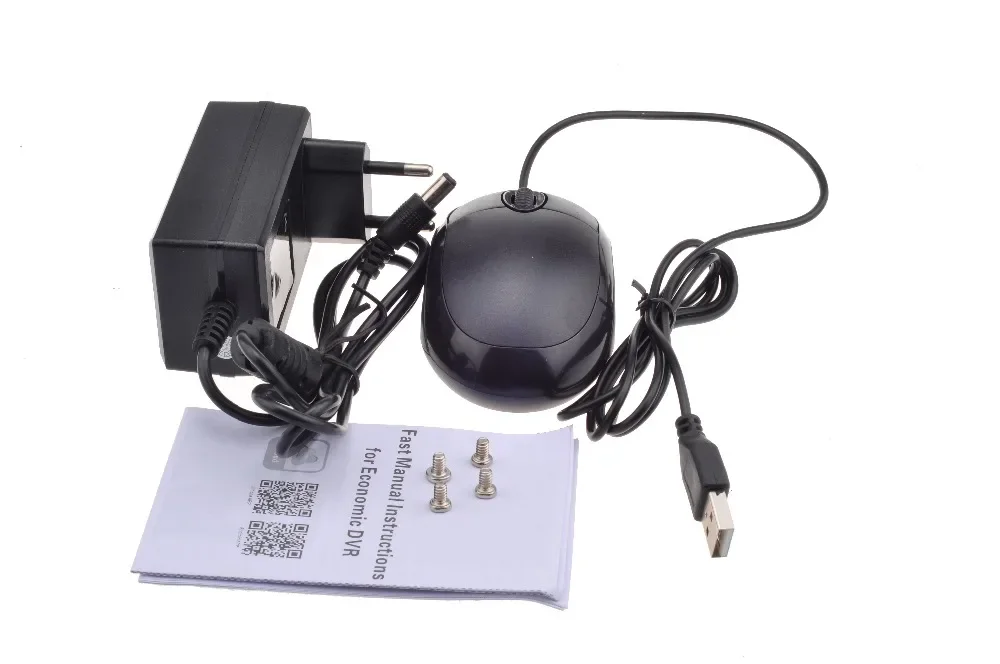

Packaging included:
AHD 1080P/5MP Cameras X 2/4 pcs
8CH AHD DVR X 1pcs

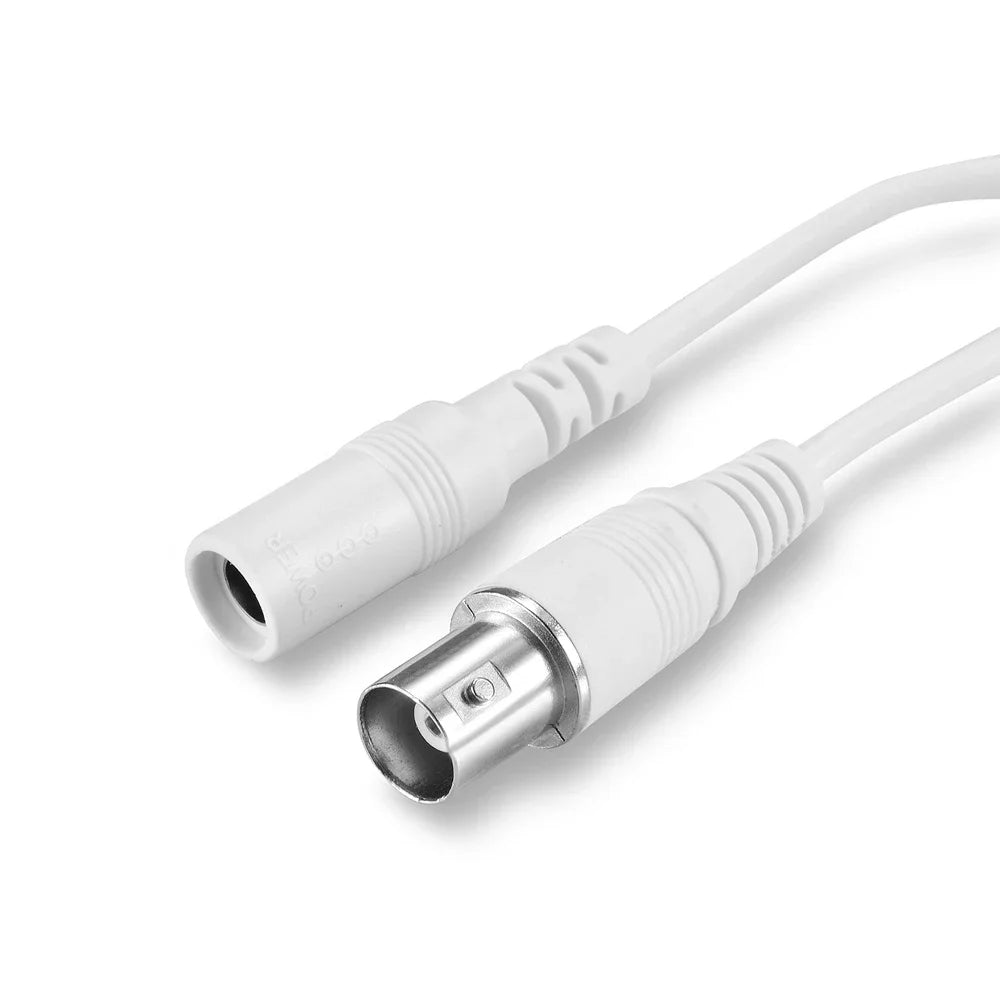

18M BNC Cable X 2/4/6/8 pcs
12V/2A power adapter for dvr X 1pcs
12V/3A power adapter for camera X 1/2 pcs
1-to-2 power splitter X 2/4 pcs
mouse X 1pcs
some screws
AHD features:

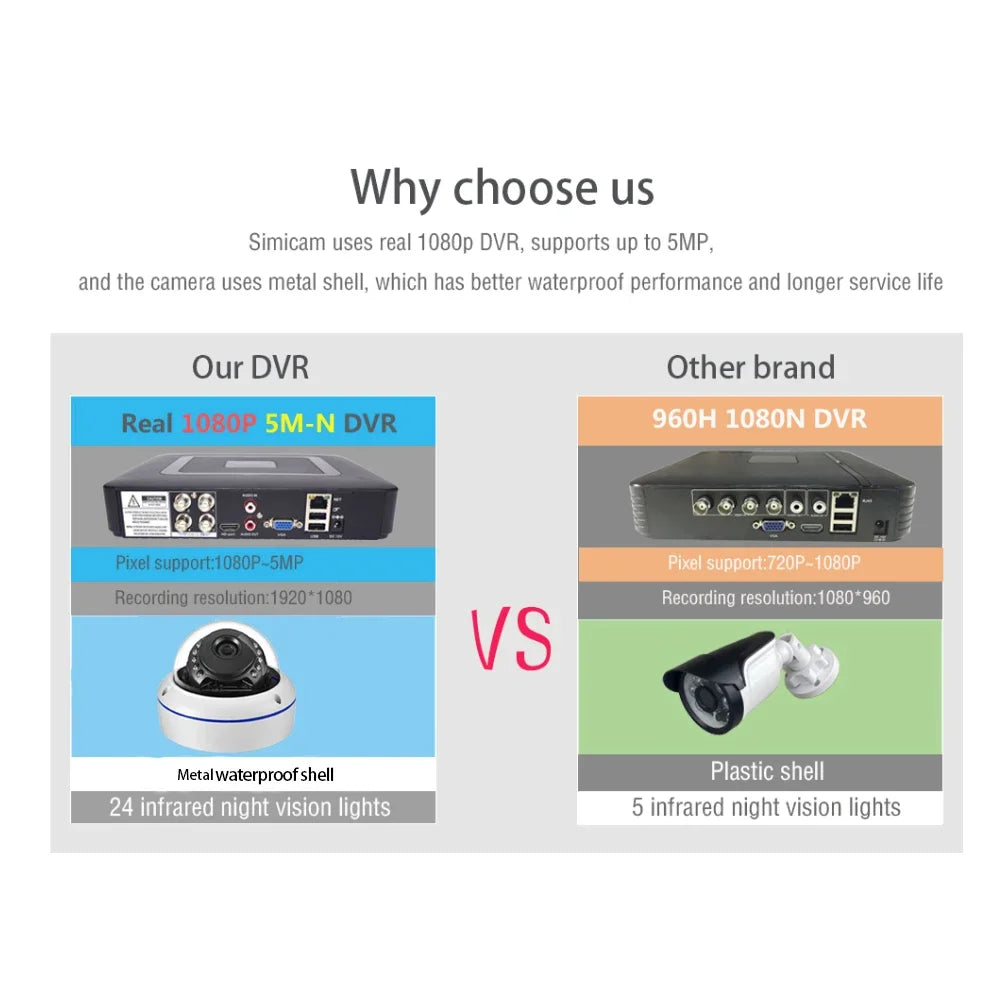

Why choose us
Simicam uses real 1080p DVR, supports up to 5MP,
and the camera uses metal shell, which has better waterproof performance and longer service life

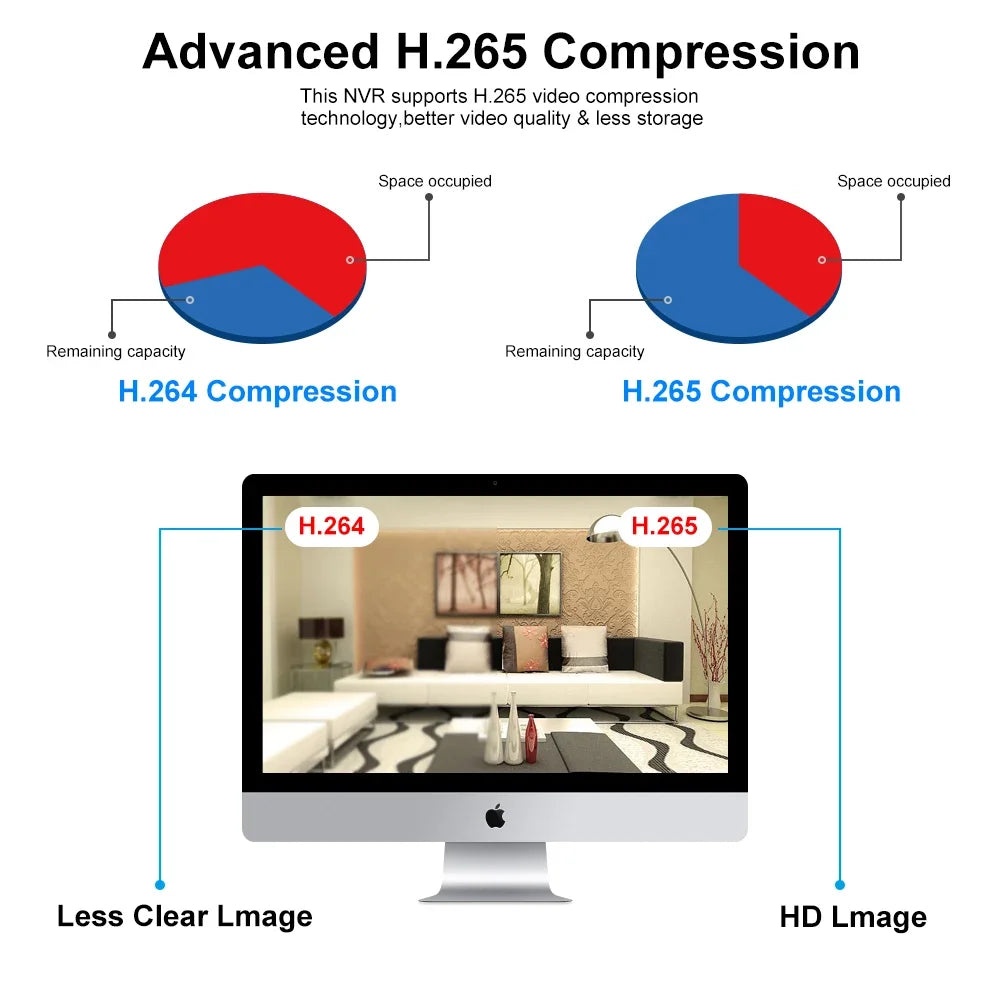

The NVR Support H.265 video compression technology,better video quality&lessstorage
Motion Detection & Alarm Alert

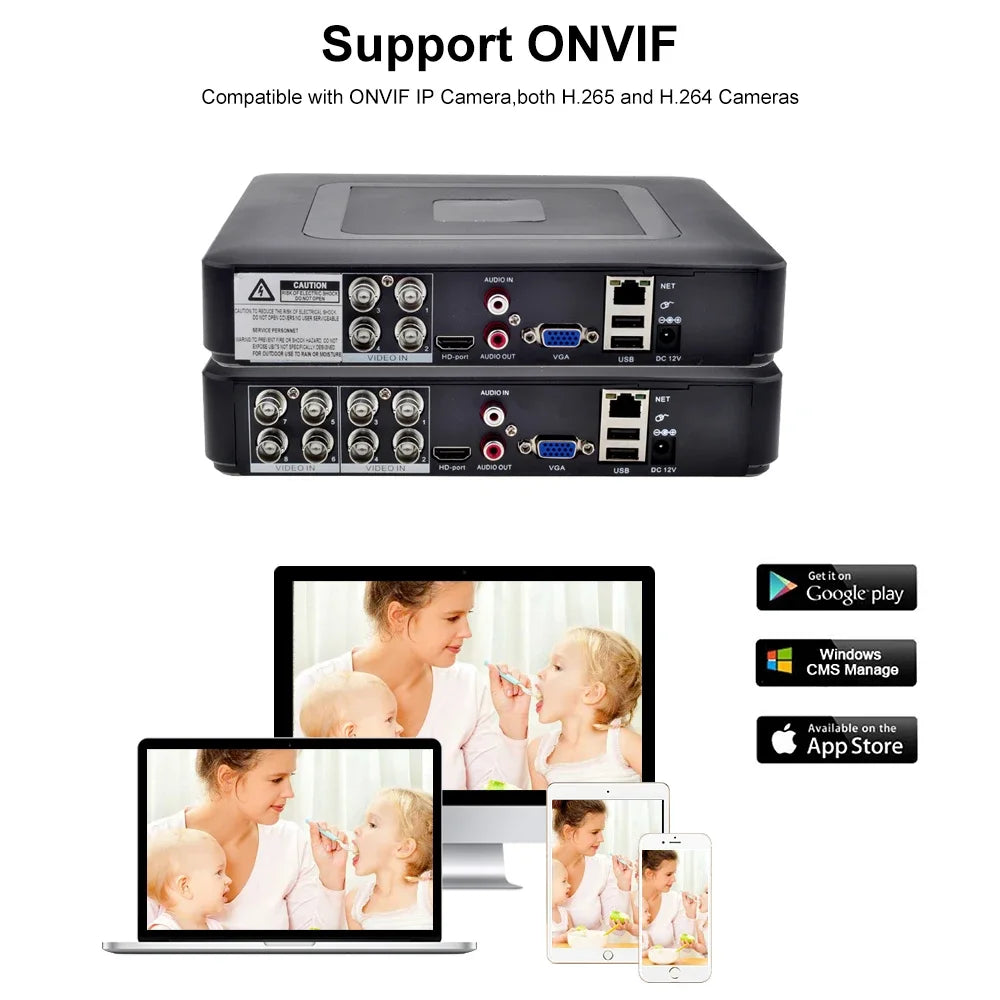

Support ONVF 2.0

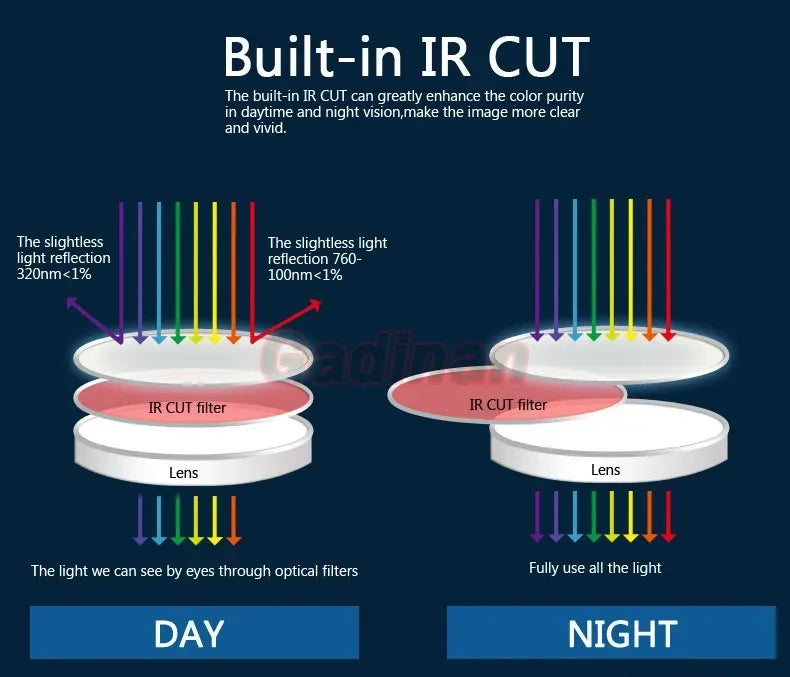

Camera has a very good night image quality. Infrared Cut Filter to ensure the highest quality images - day and night. During the day, the infrared cut filter drops in front of the lens to block the infrared lights from entering. This ensures that they do not affect the colors of the footage. When lighting levels become too low, this filter is automatically disengaged to allow the infrared light into the lens of the camera. This is when the full-color image turns to a monochrome black and white.
Waterproof All-weather Security Camera
Dome Description
1. AHD 5MP
2. 3.6mm,6mm HD lens optional
3. Color CMOS Sensor, ICR
4. Metal housing,bullet camera outdoor indoor use
5. 15pcs IR leds light , 5-25M Max IR distance
|
Model |
AHD 5MP |
|
Sensor |
CMOS sensor |
|
Minimum Illumination |
Color:0.01Lux,(F1.2,AGC ON),0Lux with IR |
|
Black & White:0.001Lux,(F1.2,AGC ON),0Lux with IR |
|
|
Photosensitive Resistance |
1 photosensitive resistance interface, support the photosensitive resistor input signal and image, IR-CUT, infrared lamp linkage |
|
Shutter |
1/50(1/60) seconds to 1/10,000 seconds |
|
Day and Night Function |
Support IR-CUT |
|
Infrared light |
15pcs IR Leds |
|
Lens |
2.8mm/3.6mm/6mm |
|
Synchronous Mode |
inter-sync |
|
Noise-signal Ratio |
>58dB |
|
Temperature and Humidity |
- 10’C ~ 60’C, humidity is less than 90% (no condensation) |
|
Power |
DC12V±10% |
|
Consumption |
<5W |
|
Dimension |
103*80mm |
|
Housing material |
Metal |
Features：
Support AHD 5MP/4MP/3MP/1080P/960P/720P series front-end real-time encoding;
Support VGA, HDMI HD output;
Support XM Cloud technology, easy to achieve a variety of network penetration, one step to remote monitoring, getting rid of various complicated network settings, easy and simple to operate;
Support various mobile monitoring:(IOS, Android).
Support multiple web browsers(IE,Chrome,Firefox,Safari);
Support more than 20 languages(English, Finnish, French, German, Greek, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, Chinese, Traditional Chinese, Turkish, etc.), no nation boundaries;
perfect protection circuit, unique triple watchdog function
Supporting web, CMS, center platform management software MYEYE, provide SDK development.
Support XVI，image quality is better

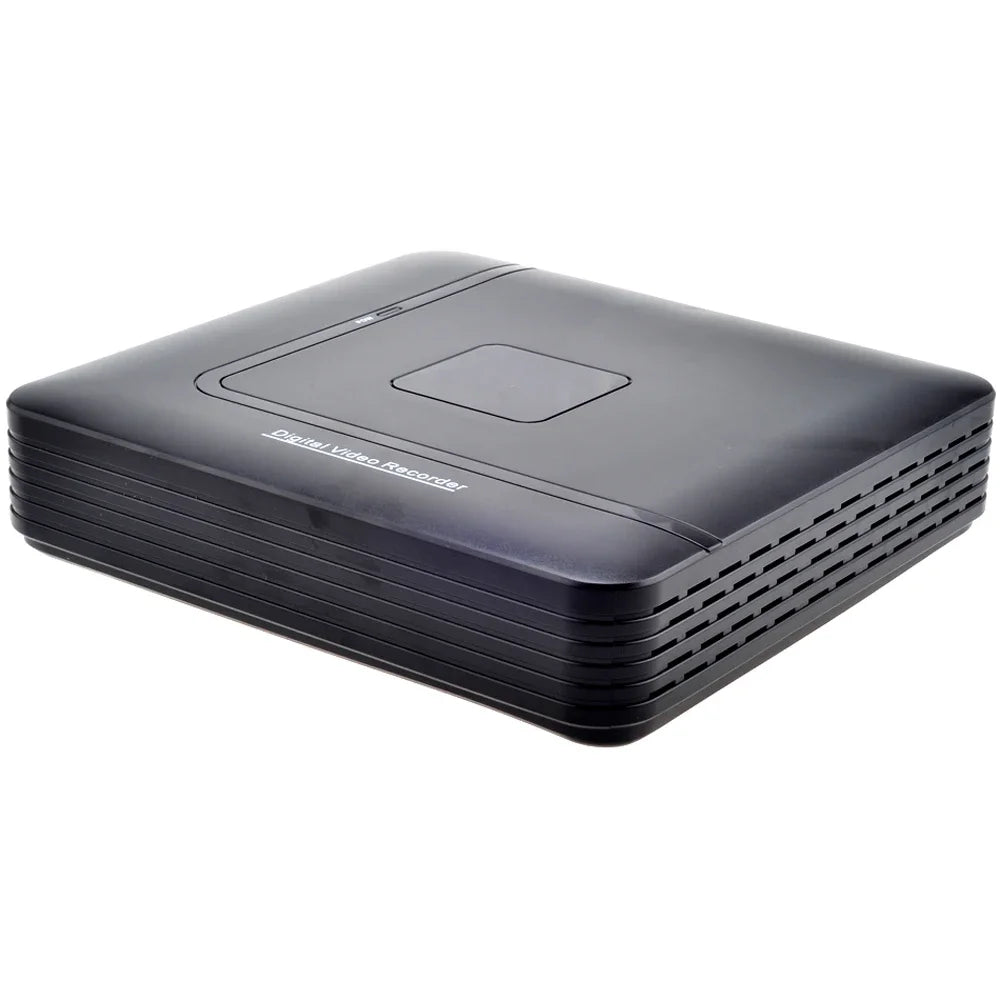

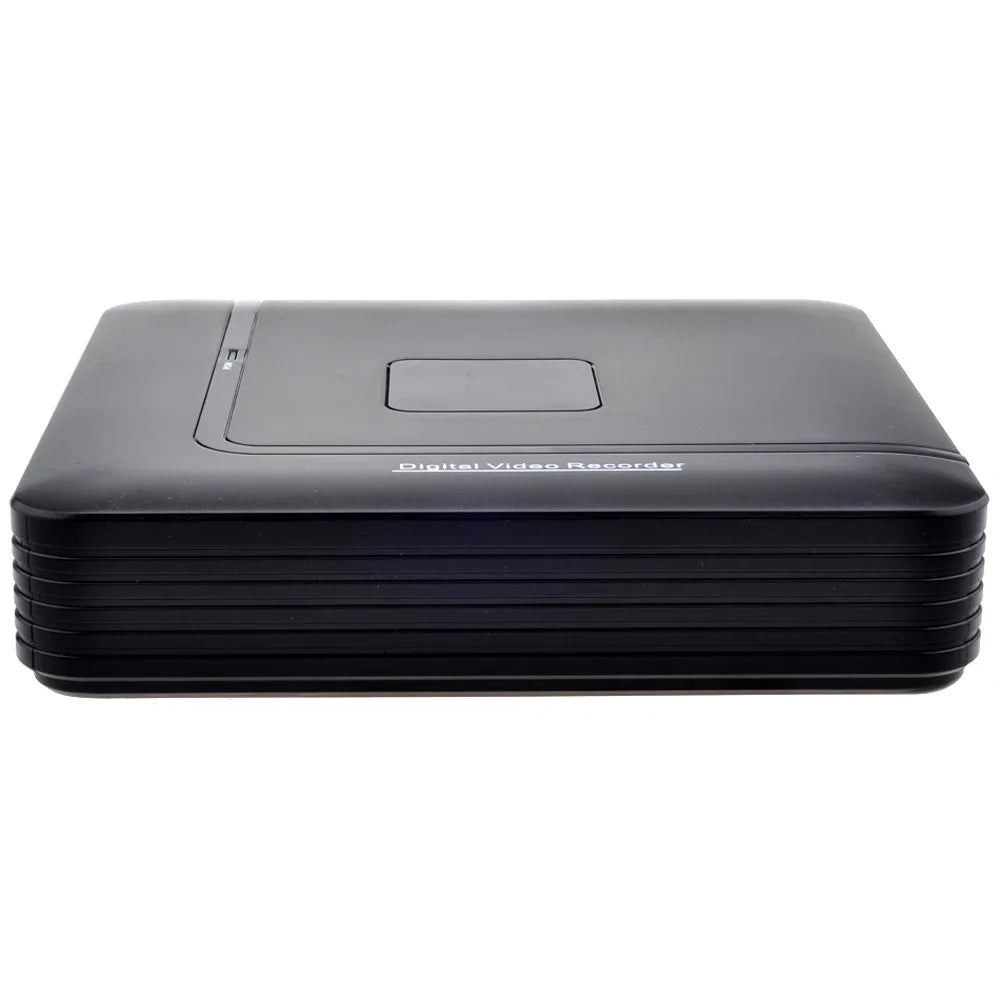

8CH AHD-DVR Specification:
|
System |
Main processor |
Hi3520DV400 |
|
Interface |
Preview |
1/4/8/9 |
|
Video |
Codec |
H.265+ |
|
Monitor quality |
VGA(1080P at most);HDMI(1080P at most) |
|
|
Preview ability |
8*5M-N@12fps（6 in 1）/8*4M-N@15fps（6 in 1）/ 8*1080P@15fps（6 in 1）/4*1080P（6 in 1） |
|
|
Encode ability |
8*5M-N@6fps（6 in 1）/8*4M-N@8fps（6 in 1）/ 8*1080P@8fps（6 in 1）/4*1080P@18fps（6 in 1） |
|
|
Decode ability |
4*5M-N@6fps（6 in 1）/8*4M-N@8fps（6 in 1）/ 8*1080P@8fps（6 in 1）/4*1080P@18fps（6 in 1） |
|
|
Multi-mode input |
Analog：8*5M-N；support Network：16*1080P；8*5M |
|
|
Motion Detection |
Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) |
|
|
Audio |
Audio compression |
G.711A |
|
Intercom |
support |
|
|
Record & playback |
Record mode |
manual>alarm>motion detection>timing |
|
Local Playback |
4ch(analog input mode) |
|
|
Search mode |
Search by time, calendar, event, channel |
|
|
Storage & backup |
Video storage |
HDD, network |
|
Backup mode |
Network, USB hard disk, USB burner, SATA burner |
|
|

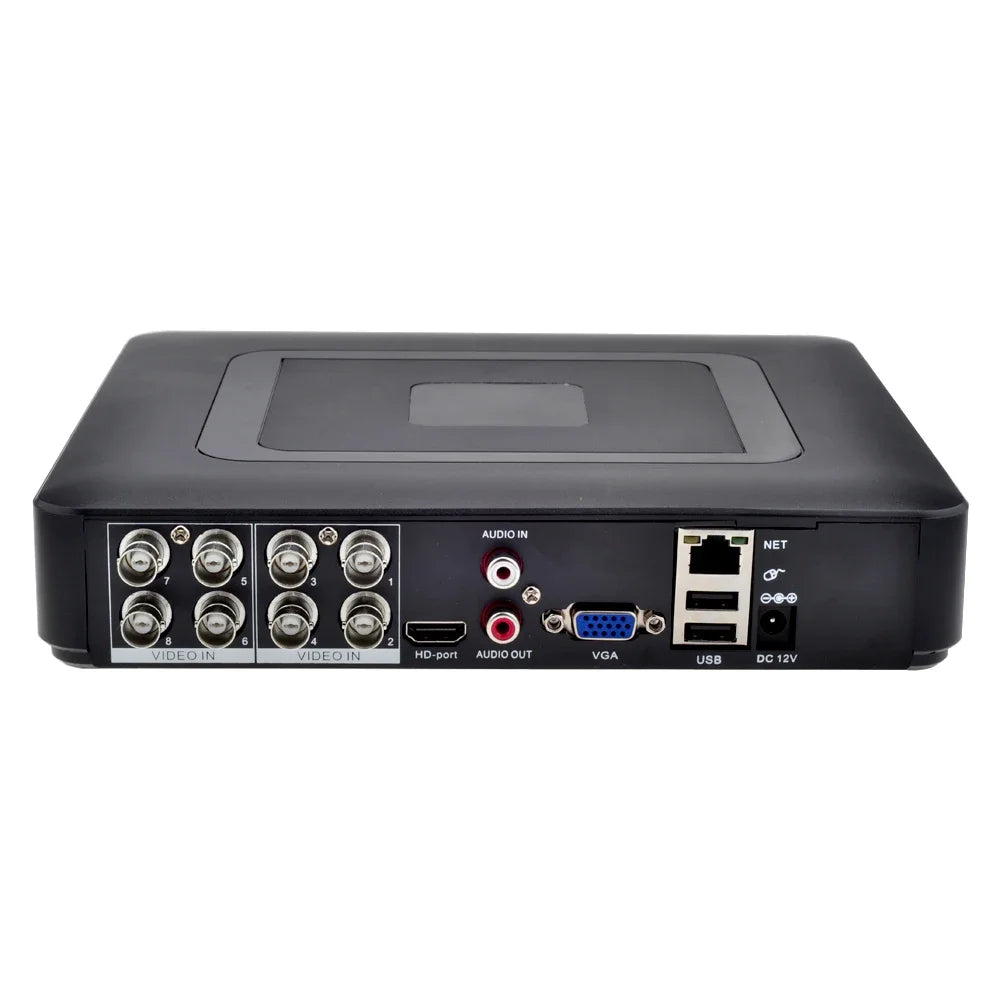

External Interface |
Video input |
8ch BNC |
|
Video output |
1ch VGA, 1ch HDMI |
|
|
Loop Vout |
N/A |
|
|
Audio I/O |
1/1 |
|
|
Alarm I/O |
0/0 |
|
|
Network interface |
RJ45 10M/100M self-adaption |
|
|
PTZ control |
Support kinds of PTZ protocols |
|
|
USB |
2* USB 2.0 ports |
|
HDD |
1*SATA ports (Max 8TB/per) |
|
|
Wireless |
3G, WIFI (extend via USB) |
|
|
General |
Power supply |
12V/2A |
|
Power Consumption |
<15W (without HDD) |
|
|
Working environment |
Temperature:0℃—+55℃，Humidity:10%—90%，Atm:86kpa—106kpa |
|
|
Dimension |
255mm(length)* 225mm(width)* 45mm(height) |
|
|
Weight |
1KG |
-
